Hot Water Electric Pressure Washers
115V Units
Hotsy 500 Series
Hot Water Electric powered portable pressure washers engineered with the user in mind. Stainless steel coil housing and portability is standard on 555SS, 560SS, and 680SS. Model 558 (propane unit) is all powder coated and portability and propane tank are optional.. Adjustable thermostat is standard on all hot water Hotsy units. Models include flat free tires, 37′ power cord with GFCI, hose reel bracket, 50′ pressure hose, trigger gunjet, insulated wand, and adjustable spray nozzle.
Units are ETL-certified to UL-1776 Safety Standards.
Warranty: Overall Unit – 1 Year / Coil – 5 Years Full Warranty / Pump – 7 Years Limited
OPTIONS: Hose Reel Kit, Quick Couple Nozzles
| Model | GPM | PSI | Burner Fuel | HP | Voltage | AMPS |
|---|---|---|---|---|---|---|
|

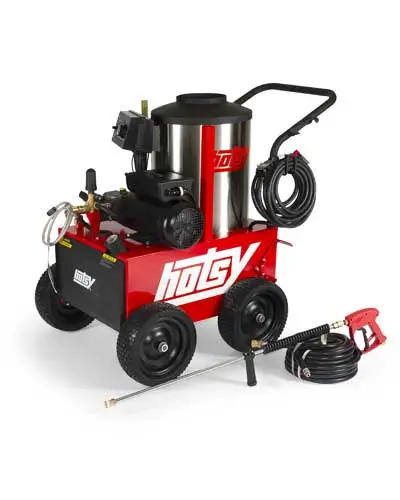

555SS |
2.2 |
1300 |
Oil |
2 |
115V/1ph |
20 |
|
558* |
2.2 |
1300 |
Propane |
2 |
115V/1ph |
18 |
|

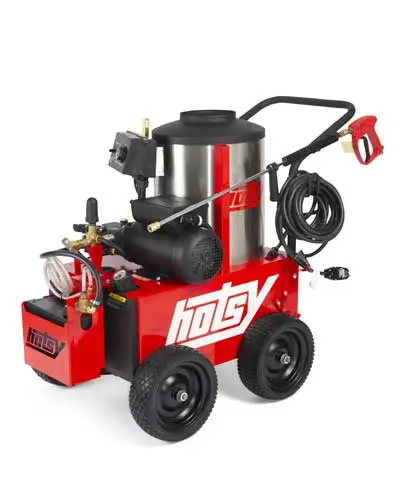

560SS |
2.1 |
1500 |
Oil |
2.3 |
115V/1ph |
20 |
|

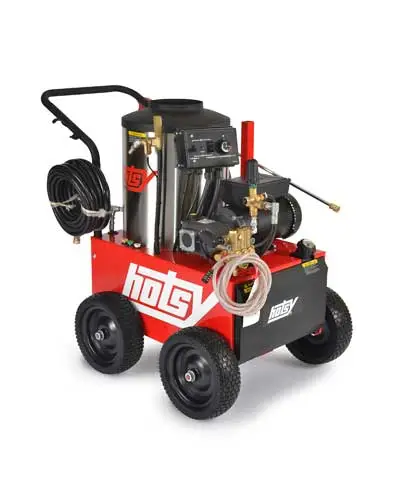

680SS |
3.0 |
1000 |
Oil |
2 |
115V/1ph |
20 |
2.2GPM @ 1300 PSI
High Efficiency Oil-Fired Burner
The Hotsy 555HE performs to the same specs as the 555SS, but has the added features of a high-efficiency downdraft burner (lower fuel costs) and Auto Start/Stop (unit times out and shuts down with release of trigger gun and restarts when gun is pulled.) Stainless steel coil housing, flat free tires, 37′ power cord with GFCI, 50′ pressure hose, trigger gun, insulated wand, and quick couple nozzles.
The Hotsy 555HE is ETL-certified to UL-1776 safety standards.
Warranty: Overall Unit – 1 Year / Coil – 5 Years Full Warranty / Pump – 7 Years
OPTIONS: Hose Reel Kit
230V / 208V Units
Hotsy 700 Series and 895SS
This series offers a nice balance of Hotsy ruggedness and cleaning performance, yet the affordability of an entry-level machine. Available in direct drive or belt drive models. Stainless steel coil housing standard unless noted below, pneumatic tires, 37′ power cord with GFCI, hose reel bracket, 50′ pressure hose, adjustable temperature control, and quick couple nozzles.
Units are ETL-certified to UL-1776 Safety Standards.
Warranty: Overall Unit – 1 Year / Coil – 5 Years Full Warranty / Pump – 7 Years Limited
*Note: Models 771 and 772 have a powder coated coil housing. Portability and propane tank are optional on 771.
OPTIONS: Hose Reel
| Model | GPM | PSI | Burner Fuel | Drive | HP | Voltage | AMPS | Portability |
|---|---|---|---|---|---|---|---|---|
|
771* |
3 |
1500 |
Propane |
Direct |
3 |
230V/1ph |
13 |
Optional |
|
772* |
3 |
1500 |
Nat Gas |
Direct |
3 |
230V/1ph |
13 |
N/A |
|
795SS |
3.5 |
2000 |
Oil |
Belt |
5 |
230V/1ph |
24 |
Std |
|
**797SS** |
3.5 |
2000 |
Oil |
Belt |
5 |
230V/1ph |
24 |
Std |
|
**797SS-208** |
3.5 |
2000 |
Oil |
Belt |
5 |
208V/1ph |
27 |
Std |
|
895SS |
3.5 |
3000 |
Oil |
Belt |
8.2 |
230V/1ph |
36 |
Std |
|
**897SS** |
3.2 |
3000 |
Oil |
Belt |
6.2 |
230V/1ph |
28 |
Std |
|
**897SS-208** |
3.2 |
3000 |
Oil |
Belt |
6.2 |
208V/1ph |
29 |
Std |
* Models 771 and 772 have a red powder coated coil housing. Portability and propane tank are optional on 771.
** Hotsy Black Label Machines include Auto Start/Stop and Hour Meter as Standard Equipment.
208V / 230 V / 460V / 575V Units - 1PH or 3PH
Hotsy 800 Series – Portable – Numerous Configurations Available
Comparable to the cleaning power of Hotsy’s hot water electric heavy duty stationary units, the big and beefy 800 series allows the user to tackle the heaviest of industrial cleaning jobs while remaining portable. The 28″ wide wheelbase helps with stability, yet is narrow enough to fit easily through doorways. Stainless steel coil housing, solid flat-free tires, hose reel bracket, 50′ pressure hose, adjustable temperature control, and quick couple nozzles. All units are belt driven and have oil-fired burners.
Units are ETL-certified to UL-1776 Safety Standards.
Warranty: Overall Unit – 1 Year / Coil – 5 Years Full Warranty / Pump – 7 Years Limited
OPTIONS: Auto Start/Stop Kit, Thermal Shutdown Kit, Time Delay Shutdown, Hose Reel, Detergent Bucket Bracket
| GPM | PSI | Burner Fuel | HP | Voltage |
|---|---|---|---|---|
|
4.0-5.0 |
2000 or 3000 |
Oil |
5.0 6.2 7.5 8.2 or 10 |
208V/1ph 208V/3ph 230V/1ph 230V/3ph 460V/3ph 575V/3ph |

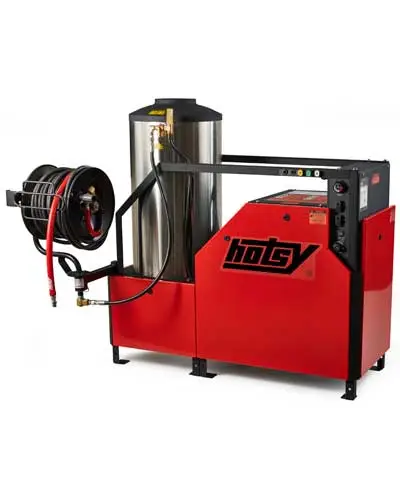

Hotsy 900 and 1400 Series – Stationary – 30 Models Available
The 900/1400 Series is packed with standard features including programmable smart-control automation. Safety is on full display with locking lids and side panels that are easily removed for access to the machine components for service and repair. The 900/1400 Series is electric-powered and can be configured with a natural gas fired or propane fired burner. All units equipped with a 50′ pressure hose and quick couple nozzles, and come standard with Auto-Start/Stop technology.
Units are ETL-certified to UL-1776 Safety Standards.
Warranty: Overall Unit – 1 Year / Coil – 5 Years Full Warranty / Pump – 7 Years Limited
OPTIONS: Draft Diverter, Remote Stations, Water Inlet Solenoid, Soap Solenoid & Switch (for Remote), Power Dampener
| Series | GPM | PSI | Burner Fuel | HP | Voltage |
|---|---|---|---|---|---|
|
900 |
4.0 |
2000 - 2300 |
Natural Gas or Propane |
5.0 or 6.2 |
208V/1ph 208V/3ph 230V/1ph 230V/3ph 460V/3ph 575V/3ph |
|
1400 |
4.0 or 5.0 |
3000 |
Natural Gas or Propane |
7.5, 8.2, or 10 |
208V/1ph 208V/3ph 230V/1ph 230V/3ph 460V/3ph 575V/3ph |
Hotsy 1800 Series – Large Frame Stationary – 7 Models Available
The 1800 Series is heavy duty power packed with standard features including programmable smart-control automation. All units equipped with a 50′ pressure hose and quick couple nozzles, and come standard with Auto-Start/Stop technology. Elevated gas valve is located at the back corner for easy installation and maintenance. Cabinet design protects pump and electrical components. Stainless steel coil housing for extra durability. Unit is equipped with 50′ of high pressure hose, trigger gun, insulated wand, and quick couple nozzles.
Units are ETL-certified to UL-1776 Safety Standards.
Warranty: Overall Unit – 1 Year / Coil – 5 Years Full Warranty / Pump – 7 Years Limited
*Note: Oil-fired units are not supplied with a fuel tank.
OPTIONS: Draft Diverter, Remote Stations, Water Inlet Solenoid, LP Conversion Kit, Wall Mount Hose Reels, Power Dampener
| GPM | PSI | HP | Burner Fuel | Voltage |
|---|---|---|---|---|
|
6 |
2500 - 3000 |
10 - 15 |
Natural Gas or Diesel* |
208V/3ph 230V/1ph 230V/3ph 460V/3ph 575V/3ph |
Hotsy 5700 / 5800 Series – Extra Large Frame Stationary – 10 Models Available
The 5700/5800 Series are our largest hot water electric powered stationary washing units. All units are equipped with a 50′ pressure hose and quick couple nozzles, and come standard with Auto-Start/Stop technology. Elevated gas valve is located at the back corner for easy installation and maintenance. Cabinet design protects pump and electrical components. Stainless steel coil housing for extra durability. Unit is equipped with 50′ of high pressure hose, trigger gun, insulated wand, and quick couple nozzles.
Units are ETL-certified to UL-1776 Safety Standards.
Warranty: Overall Unit – 1 Year / Coil – 5 Years Full Warranty / Pump – 7 Years Limited
*Note: Oil-fired units are not supplied with a fuel tank.
OPTIONS: Draft Diverter, Remote Stations, Water Inlet Solenoid, LP Conversion Kit, Wall Mount Hose Reels
| Series | GPM | PSI | Burner Fuel | HP | Voltage |
|---|---|---|---|---|---|
|
5700 |
8 |
3000 |
Natural Gas or Diesel* |
20 |
208V / 3ph 230V / 3ph 460V / 3ph 575V / 3ph |
|
5800 |
9.5 |
2500 |
Natural Gas |
20 |
208V / 3ph 230V / 3ph 460V / 3ph 575V / 3ph |
Data effective January 1, 2023. Specifications and product descriptions subject to change without notice.
