The Safe, No-Solvent Solution to Cleaning Parts Automatically
CUDA Front Load Automatic Parts Washers
Space Saving Roll-In Door on All Models
Rolls internally to allow unobstructed access to the wash chamber. Prevents wash solution from dripping on the shop floor
Cuda 2530 Series
Cuda’s 2530 Series is the smallest of the Cuda front load automatic parts washer models and is smaller than many solvent tanks. These units feature a turntable diameter of 25 inches, working height of 30″, and load capacity of 500 lbs. Equipped with a 3 HP vertical seal-less pump producing 50 GPM at 45 PSI. Unit has a 6 kW heater, automatic oil skimmer, and low water shutdown. Operating Temperatures of 150 to 180 degrees.
Machine dimensions are 48″L x 45″W x 70″H.
These units are ETL-certified to UL-1776 Safety Standards.
OPTIONS: Automatic Water Fill, Containment Ring, Filtration & Sump Sweep, 4-hook Parts Tree, Heater & Skimmer Timers, Two-tier Turntable, Oil Drain Container, Hour Meter, Small and Large Parts Baskets, 2-Tier Turntable, 60-Mesh Debris Screen Tray
| Working Height | Turntable Diameter | Amps - Volts (PH) |
|---|---|---|
|
30″ |
25″ |
42 – 208/1 38 – 230/1 25 – 208/3 23 – 230/3 11 – 460/3 9 – 575/3 |
Cuda 2840 Series
Cuda’s 2840 Series is the next larger size in the front-load automatic parts washer mocels. It features a 28″ turntable diameter, working height of 40″, and a load capacity of 1000 lbs. Unit is equipped with a 3 HP vertical seal-less pump producing 50 GPM at 45 PSI, and has a 6 kW heater, integrated oil skimmer, low water shutdown, and space saving roll-in door. Operating Temperature 150 – 180 degrees.
Machine dimensions are 51″L x 50″W x 80″H.
These units are ETL-certified to UL-1776 Safety Standards.
OPTIONS: Automatic Water Fill, Containment Ring, Filtration & Sump Sweep, 4-hook Parts Tree, Heater & Skimmer Timers, Two-tier Turntable, Oil Drain Container, Hour Meter, Small and Large Parts Baskets, 2-Tier Turntable, 60-Mesh Debris Screen Tray
| Working Height | Turntable Diameter | Amps - Volts (PH) |
|---|---|---|
|
40″ |
28″ |
42 – 208/1 38 – 230/1 25 – 208/3 23 – 230/3 11 – 460/3 9 – 575/3 |
Cuda 2848 Series
Cuda’s 2848 Series feature a 28″ turntable diameter, working height of 48″, and a load capacity of 1000 lbs. Unit is equipped with a 5 HP vertical seal-less pump producing 110 GPM at 50 PSI, and has a 50 gal sump capacity, 9 kW heater, integrated oil skimmer, low water shutdown, and space saving roll-in door. Operating Temperature 150 – 180 degrees.
Machine dimensions are 51″L x 50″W x 88″H.
These units are ETL-certified to UL-1776 Safety Standards.
OPTIONS: Automatic Water Fill, Containment Ring, Filtration & Sump Sweep, 4-hook Parts Tree, Heater & Skimmer Timers, 2-Tier Turntable, Oil Drain Container, Hour Meter, Small and Large Parts Baskets, 2-Tier Turntable, 60-Mesh Debris Screen Tray
| Working Height | Turntable Diameter | Amps - Volts (PH) |
|---|---|---|
|
48″ |
28″ |
64 – 208/1 58 – 230/1 40 – 208/3 36 – 230/3 17 – 460/3 14 – 575/3 |

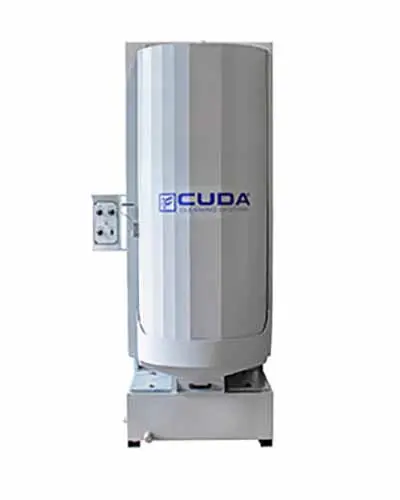

Cuda 2860 Series
Cuda’s 2860 Series feature a working height of 60″ while maintaining the smaller footprint of a 28″ turntable, and a load capacity of 1000 lbs (even weight distribution). Unit is equipped with a 5 HP vertical seal-less pump producing 110 GPM at 50 PSI, and has a 50 gal sump capacity, 9 kW heater, integrated oil skimmer, low water shutdown, and space saving roll-in door. Operating Temperature 150 – 180 degrees.
Machine dimensions are 51″L x 50″W x 95″H.
These units are ETL-certified to UL-1776 Safety Standards.
OPTIONS: Automatic Water Fill, Containment Ring, Filtration & Sump Sweep, 4-hook Parts Tree, Heater & Skimmer Timers, 2-Tier Turntable, Oil Drain Container, Hour Meter, Small and Large Parts Baskets, 2-Tier Turntable, 60-Mesh Debris Screen Tray
| Working Height | Turntable Diameter | Amps - Volts (PH) |
|---|---|---|
|
60″ |
28″ |
58 – 230/1 40 – 208/3 36 – 230/3 17 – 460/3 |

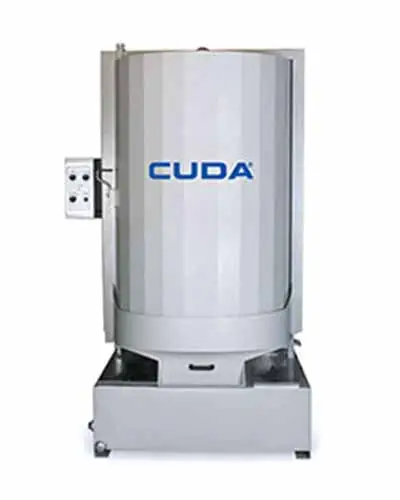

Cuda 3648 Series
The 3648 Cuda Front Load Series feature a 36″ turntable diameter, working height of 48″, and a load capacity of 2500 lbs (even weight distribution). Unit is equipped with a 7.5 HP vertical seal-less pump producing 150 GPM at 50 PSI, and has a 113 gal sump capacity, two (2) 9 kW heaters, integrated oil skimmer, low water shutdown, and space-saving roll-in door. Operating Temperature 150 – 180 degrees.
Machine dimensions are 57″L x 49″W x 94″H.
These units are ETL-certified to UL-1776 Safety Standards.
OPTIONS: Automatic Water Fill, Containment Rings 2-Stage Filtration & Sump Sweep, 4-hook Parts Tree, Heater Timer, Heater & Skimmer Timer, 2-Tier Turntable, Oil Drain Container, Hour Meter, Small and Large Parts Baskets, 60-Mesh Debris Screen Tray
| Working Height | Turntable Diameter | Amps - Volts (PH) |
|---|---|---|
|
48″ |
36″ |
64 – 208/3 58 – 230/3 32 – 460/3 28 – 575/3 |

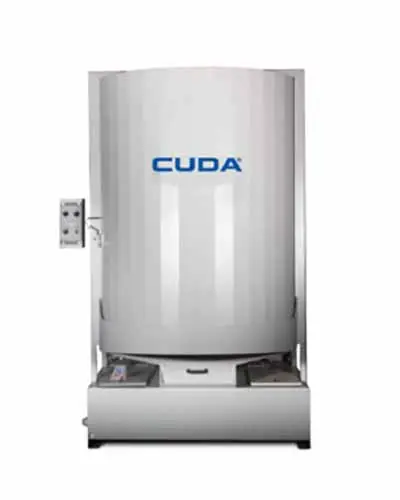

Cuda 4860 Series
Cuda’s 4860 Series feature a 36″ turntable diameter, working height of 48″, and a load capacity of 5000 lbs (even weight distribution). Unit is equipped with a 7.5 HP vertical seal-less pump producing 200 GPM at 50 PSI, and has a 156 gal sump capacity, two (2) 9 kW heaters, automatic oil skimmer, and low water shutdown. Machine dimensions are 75″L x 66″W x 105″H.
These units are ETL-certified to UL-1776 Safety Standards.
OPTIONS: 12″ Height Extension, Automatic Water Fill, Containment Ring, 2-Stage Filtration, 4-hook Parts Tree, Heater & Skimmer Timers, 2-Tier Turntable, Oil Drain Container, Hour Meter
| Working Height | Turntable Diameter | Volts/PH |
|---|---|---|
|
60″ |
48″ |
230/3 460/3 575/3 |

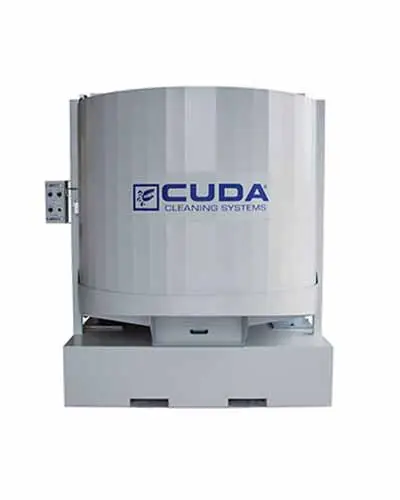

Cuda 7248 Series
Cuda’s 4860 Series feature a large 72″ turntable diameter, working height of 48″, 200 gal sump capacity, and a load capacity of 5000 lbs (even weight distribution). Unit is equipped with a 7.5 HP vertical seal-less pump producing 160 GPM at 45 PSI, two (2) 9 kW heaters, automatic oil skimmer, and low water shutdown.
Machine dimensions are 100″L x 85″W x 100″H.
These units are ETL-certified to UL-1776 Safety Standards.
OPTIONS: Automatic Water Fill, Containment Ring, Filtration & Sump Sweep, Heater & Skimmer Timers, Oil Drain Container, Hour Meter, Small and Large Parts Baskets
| Working Height | Turntable Diameter | Volts/PH |
|---|---|---|
|
72″ |
48″ |
230/3 460/3 575/3 |

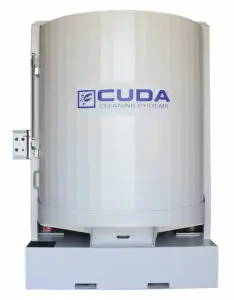

Cuda 7272 Series
Cuda’s 7272 Series feature a large 72″ turntable diameter, working height of 72″, 250 gal sump capacity, and a load capacity of 5000 lbs (even weight distribution). Unit is equipped with a 7.5 HP vertical seal-less pump producing 160 GPM at 45 PSI, three (3) 9 kW heaters, automatic oil skimmer, and low water shutdown.
Machine dimensions are 100″L x 85″W x 100″H.
These units are ETL-certified to UL-1776 Safety Standards.
OPTIONS: Automatic Water Fill, Containment Ring, Filtration & Sump Sweep, Heater & Skimmer Timers, Oil Drain Container, Hour Meter, Small and Large Parts Baskets
| Working Height | Turntable Diameter | Volts/PH |
|---|---|---|
|
72″ |
72″ |
230/3 460/3 575/3 |
Data effective January 1, 2025. Specifications, product descriptions and pictured appearance subject to change without notice.
